Adapter subbase for R4795 || Q7800F1012/U
Артикул: Q7800F1012/U
Наименование: Adapter subbase for R4795
Производитель: Honeywell
|
|
Overview Burner, panel or wall mount subbases for 7800 SERIES relay modules and S7830A Expanded Annunciator. Features - Makes electrical connections for 7800 SERIES relay modules or S7830A Expanded Annunciator through bifurcated contacts.
- Provides terminals for field wiring.
- Twenty-two terminals.
Product Specifications - Application
- Wiring Adapter Subbase

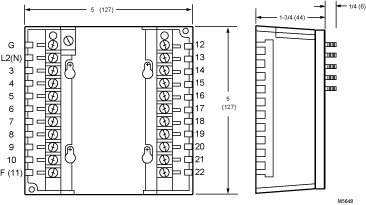

- Dimensions (in.)
- 5 in. high x 5 in. wide x 1 3/4 in. deep
- Dimensions (mm)
- 127 mm high x 127 mm wide x 44 mm deep
- Used With
- RM7895
- Weight (lb)
- 15 oz
- Weight (kg)
- 0.43 kg
- Comments
- Burner/wall mount adapter subbase for R4795
- Approvals, Underwriters Laboratories Inc.
- Component Recognized, File No. MP268, Guide No. MCCZ2.
- Approvals, Canadian Standards Association
- Certified, File No. LR95329-3.
- Shipping and Storage Temperature Range (F)
- -40 F to +140 F
- Shipping and Storage Temperature Range (C)
- -40 C to +60 C
- Vibration
- 0.5 G environment
| | | | |
|
