75 lb-in, NSR, Floating with non-linear feedback for slaving Series 90, 120V || M6284A1089-S/U

Product Specifications

Application

Electric

Dimensions (in.)

6 7/16 in. high x 5 1/2 in. wide x 8 3/4 in. deep

Dimensions (mm)

164 mm high x 140 mm wide x 222 mm deep

Includes

Junction Box

Weight (lb)

9.5 lb

Mounting

Foot-mounted

Frequency

50 Hz, 60 Hz

Approvals, Underwriters Laboratories Inc.

Listed: File No. E4436, Guide No. XAPX for USA and Canada

Electrical Connections

Quick-connect terminals

Supply Voltage

24V

Power Consumption

Driving-- 21 VA

Ambient Temperature Range (F)

-40 F to +150 F

Ambient Temperature Range (C)

-40 C to +60 C

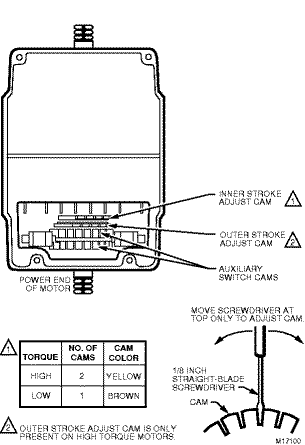

Internal Auxiliary Switch

0

Auxiliary Switch Ratings

AFL - 120 Vac-- 7.2A, ALR- 120 Vac-- 43.2A, AFL - 240 Vac-- 3.6A, ALR- 240 Vac-- 21.6A

Stroke

Fixed, 160 degrees

Shaft Dimensions (in.)

0.375 in. Square

Control Signal

Floating

Fail Safe Mode

Spring Return

Torque Rating (lb-in.)

60 lb-in.

Torque Rating (Nm)

6.8 Nm

External Auxiliary Switches Available

Yes

Shaft Rotation (upon control signal increase)

Dependent on wiring (normally closed)

Timing, Nominal

60 sec

Feedback

Yes

Shaft Dimensions (mm)

10 mm Square

Motor shafts

Dual-ended shaft

Deadweight Load on Shaft

Either End-- 200 lbs., Combined on both Shafts-- 300 lbs.
