PT3000 Averaging Discharge Air Temp Sensor, 13 in. 40-220F || C7100C1003/U
Артикул: C7100C1003/U
Наименование: PT3000 Averaging Discharge Air Temp Sensor, 13 in. 40-220F
Производитель: Honeywell
|
|
Overview Averaging Duct Temperature Sensors are used to sense temperature in discharge duct. Features - Use to troubleshoot system operation.
- Platinum positive temperature coefficient sensor.
- Factory calibrated, no settings or field calibration required.
Product Specifications - Application
- Averaging Duct Temperature Sensors

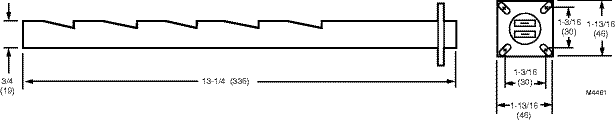

- Dimensions (in.)
- 1 13/16 in. high x 1 13/16 in. wide x 13 1/4 in. deep
- Dimensions (mm)
- 46 mm high x 46 mm wide x 336 mm deep
- Used With
- T775
- Comments
- Recessed 1/4 in. (6 mm) quick-connect terminals. 3/4 in. (19 mm) diameter sensor probe.
- Item Type
- Product
- Mounting
- Discharge Duct
- Sensor
- PT3000, 3484 ohms @ 25C PTC
- Operating Temperature Range (F)
- 40 F to 220 F
- Operating Temperature Range (C)
- 4 C to 104 C
- Shipping and Storage Temperature Range (F)
- -30 F to +150 F
- Shipping and Storage Temperature Range (C)
- -34 C to +66 C
- Insertion Length (in.)
- 13 in.
- Insertion Length (mm)
- 330 mm
- Ambient Temperature Range (F)
- 250 F Maximum
- Ambient Temperature Range (C)
- 121 C Maximum
| | | | |
|
