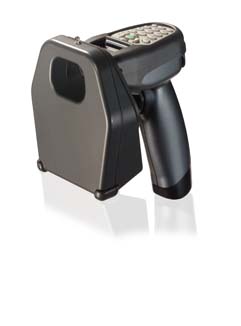

HFU 4500D - Mobile RFID/BC read-write system

Артикул: 50113280
Наименование: HFU 4500D - Mobile RFID/BC read-write system
Производитель: Leuze electronic

Part description	HFU 4500D - Mobile RFID/BC read-write system
Part no.	50113280

Technical features

Basic data
- SeriesHFU 45xxD
Read data
- Code types, readableAztec, 2/5 Interleaved, Code 128, Code 39, Data Matrix Code, GS1 Databar, PDF417, Micro PDF, QR Code, Others on request
- Reading/writing range, max.450 mm
- Transponder, readableEPC1Gen2
Optics
- Reading distance450 mm
- Light sourceLED,В Red,В Green
- LED safety class2
Electrical equipment
- Working frequency868 MHz
- Performance data
  - Supply voltage4.5 ... 6 V,В DC
Interface
- TypeRS 232
- RS 232
  - FunctionProcess
Connection
- Connection 1
  - Type of connectionSub-D
Mechanical data
- Dimension104 mmВ xВ 135 mmВ xВ 145 mm
- Housing materialplastic,В PC-ABS
- Lens cover materialplastic
- Net weight225 g
- Housing colorgray
Environmental data
- Ambient temperature, operation0 ... 50 В°C
- Ambient temperature, storage-20 ... 60 В°C
Certifications
- Protection classIP 54
- CertificationsCE
