Products for safety at work
Safe Control Components
Safety relays
MSI-SR5

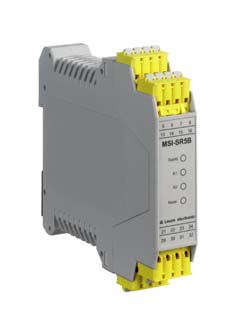

MSI-SR5B-02 - Sicherheits-Schaltgerät
:
547953
:
MSI-SR5B-02 - Sicherheits-Schaltgerät
:
Leuze electronic
Part description
MSI-SR5B-02 - Sicherheits-Schaltgerät
Part no.
547953
Technical features
Basic data
Series
MSI-SR5B
Characteristic parameters
Model
4, IEC/EN 61496
SIL
3, IEC 61508
SILCL
3, IEC/EN 62061
Performance level (PL)
e, EN ISO 13849-1
MTTF
d
73 years, EN ISO 13849-1
PFH
D
, nop = 4800
0.00000001 per hour
PFH
D
, nop = 28800
0.00000002 per hour
PFH
D
, nop = 86,400
0.00000005 per hour
Service life
20 years, EN ISO 13849-1
Mechanical life time
10.000.000 switching cycles
Category
4, EN ISO 13849
STOP category
0, IEC/EN 60204-1
B10
d
at AC1 (ohmic load)
400.000 number of cycles
B10
d
at DC13 (inductive load)
4.000.000 number of cycles
Timing
Pickup delay, automatic start
350 ms
Pickup delay, manual start
50 ms
Regression delay
10 ms
Test pulse acceptance, max.
1 ms
Time window between 2 channels of a sensor, max.
60 ms
Electrical equipment
Protective circuit
Fuse on switching output, upstream
Switching frequency, max.
3600 switching cycles/h
Continuous current per current path, max.
2 A
Input current, max.
150 mA
External safeguarding for supply
200 mA delay-action
External contact fuse protection per current path
5 A quick-action, or 3.15 A delay-action
Permissible input line resistance, max.
30 Ω
Performance data
Supply voltage
24 V, DC, -20 ... 20 %
Current consumption (without load), max.
Without external load
Outputs
Number of safety-related switching outputs (OSSDs)
2 Piece(s)
Safety-related switching outputs
Type
Safety-related switching output OSSD
Switching element 1
Relay, NO
Switching element 2
Relay, NO
Voltage type
DC
Connection
Number of connections
1 Piece(s)
Connectible safety sensors (AOPDs)
Up to 2 AOPDs type 4, type 3 or type 2 self-testing
Connectible electro-mechanical safety devices
Safety switches, E-Stop command devices, 1 and 2-channel
Connection 1
Type of connection
Terminal
Function
Connection to device
Type of terminal
Spring-cage terminal
No. of pins
16 Piece(s)
Cable properties
Connection cross-sections
0.2 to 1.5 mm²
Mechanical data
Dimension
22.5 mm x 111 mm x 114.1 mm
Housing material
plastic, PA 66
Net weight
170 g
Housing color
gray
Type of fastening
Snap-on mounting
Operation and display
Type of display
LED
Number of LEDs
4 Piece(s)
Environmental data
Ambient temperature, operation
0 ... 55 °C
Ambient temperature, storage
-25 ... 70 °C
Relative humidity (non-condensing)
0 ... 95 %
Certifications
Protection class
IP 20 (terminals), IP 40 (housing)
Safety class
II
Certifications
CE, TÜV Süd
Functions
Functions
Double sensor monitoring, Cross circuit monitoring, Start/restart interlock (RES), selectable, Automatic start/restart, Contactor monitoring (EDM)
Downloads
Technical documentation
(2)
Type
Designation
Language
File size
Format
Operating instructions
German
2 MB
pdf
Operating instructions
English
2 MB
pdf
