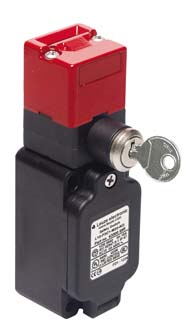

L10-M3C1-M20-K0 - Safety locking device

Àðòèêóë: 63000559
Íàèìåíîâàíèå: L10-M3C1-M20-K0 - Safety locking device
Ïðîèçâîäèòåëü: Leuze electronic


Part description L10-M3C1-M20-K0 - Safety locking device
Part no. 63000559



  • Technical features

    • Basic data
      • SeriesL10
    • Characteristic parameters
      • Service life20 years, EN ISO 13849-1
      • Mechanical life time500.000 actuation cycles, IEC 6047-5-1
      • B10d1.000.000 number of cycles
      • Usage category at DC 13Ue / Ie: 24 V / 6 A, 125 V / 1.1 A, 250 V / 0.4 A, EN 60947-5-1
      • Usage category at AC 15Ue / Ie: 250 V / 6 A, 400 V / 4 A, 500 V / 1 A, EN 60947-5-1
    • Electrical equipment
      • Contact equipment2NC + 1NO
      • Contact openingForce-fit
      • Short circuit protected500 V, 10 A, type aM, IEC 60269-1
      • Contact protectionEarthing
      • Performance data
        • Rated insulation voltage500 V AC, 600 V DC
        • Conventional thermal current, max.10 A
    • Connection
      • Number of connections1 Piece(s)
      • Number of cable entries1 Piece(s)
      • Connection 1
        • Type of connectionTerminal
        • FunctionContact connection
        • Type of terminalScrew terminal
        • No. of pins6 Piece(s)
      • Cable properties
        • Connection cross-sections1 x 0.34 mm² to 2 x 1.5 mm², wire
    • Mechanical data
      • DesignCube
      • Dimension40 mm x 62 mm x 123 mm
      • Housing materialMetal, ZAMAK
      • Electrical contact materialSilver alloy
      • Net weight364 g
      • Housing colorgray
      • Type of fasteningThrough-hole mounting
      • Type of cable entryM20 x 1.5
      • Switch typeInterlock device with guard interlocking, EN 1088
      • Switching principleCreep contact
      • Approach actuation directions4 x side (90°), 1 x top
      • Approach speed0.001 ... 0.5 m/s
      • Locking typeMechanical
      • Locking actuationManual unlocking by means of key
      • Locking force, max.1.000 N
      • Actuation frequency, max.360 per hour, IEC 6047-5-1
      • External actuatorAC-AHxx, series, straight, angled, resilient, alignable
      • Actuation force (pull-out)10 N
      • Manually delayed actuator releaseApprox. 15 to 20 seconds
      • Recoil tolerance4.5 mm
    • Environmental data
      • Ambient temperature, operation-25 ... 80 °C
    • Certifications
      • Protection classIP 67
      • CertificationsIMQ, CE, c UL US
      • Degree of contamination3, EN 60947-1
    • Functions
      • FunctionsLocking device with manual locking and unlocking, Locking device with guard interlocking according to EN 1088, Integration in control circuits up to category 4 in accordance with EN ISO 13849

  • Downloads

    • Part data of: 2013-11-24 21:03:00
