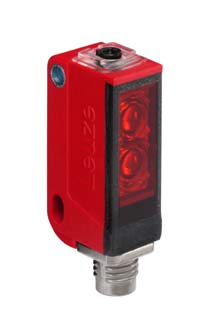

RTR 3B/66 - Energetic light scanner
Àðòèêóë: 50108506
Íàèìåíîâàíèå: RTR 3B/66 - Energetic light scanner
Ïðîèçâîäèòåëü: Leuze electronic
|
|
Part description | RTR 3B/66 - Energetic light scanner | Part no. | 50108506 | -
Basic data - Series3
- Operating principleScanning principle
-
Optics - Operating range, white 90%0 ... 0.7 m
- Operating range, gray 18%0.005 ... 0.315 m
- Operating range, black 6%0.01 ... 0.26 m
- Operating range limit, white 90%0 ... 0.75 m
- Operating range limit, gray 18%0.005 ... 0.33 m
- Operating range limit, black 6%0.01 ... 0.275 m
- Light sourceLED, Red
-
Timing - Switching frequency1.000 Hz
-
Electrical equipment -
Performance data - Supply voltage10 ... 30 V, DC
-
Outputs - Number of digital switching outputs2 Piece(s)
-
Switching output 1 - Switching elementTransistor, Push-pull
- Switching principleLight switching
-
Switching output 2 - Switching elementTransistor, Push-pull
- Switching principleDark switching
-
Connection -
Connection 1 - Type of connectionCable
- Cable length2.000 mm
- Number of conductors4 Piece(s)
-
Mechanical data - DesignCube
- Dimension11 mm x 32 mm x 17 mm
- Housing materialplastic, PC-ABS
- Lens cover materialPlastic (PMMA)
- Net weight50 g
-
Operation and display - Operational controls270° potentiometer
-
Environmental data - Ambient temperature, operation-25 ... 55 °C
-
Certifications - Protection classIP 67
- Safety classIII
- CertificationsCE, c UL US
- Standards appliedIEC 60947-5-2
-
3D-CAD models (1) -
Certificates (4) Part data of: 2013-11-24 21:03:00
|
